How to Clean the Coils Under Your Sub-Zero Fridge

Find the condenser before you reach for a brush

Not every refrigerator hides its coils in the same place, so spend a minute locating them first. Many freestanding models keep the condenser low, behind a toe grille that snaps off, while older designs mount it across the back, which means rolling the cabinet out from the wall. A built-in Sub-Zero is fitted into the cabinetry and never has to come out for this job, because the condenser is reached from the front. On a Designer (DET, DEC) model it sits behind the kickplate at floor level, and that plate is held on by two screws. On a Classic (CL) unit it lives behind the grille that flips up above the doors. Undercounter wine storage and refrigerator drawers have no space behind them, so they draw air through the front at the toe kick, and the same gentle method works there too.

• Designer (DET, DEC): kickplate at the floor, two screws
• Classic (CL): flip-up grille at the top of the unit
• Freestanding refrigerators: toe grille at the bottom, or coils on the back panel
• Undercounter units: vented grille along the base

A safe routine, start to finish

You need very little for this: a vacuum with a soft brush head, a slim coil brush, a flashlight and a pair of work gloves. The fins are thin aluminum with edges sharp enough to nick a knuckle, and they fold over under a sideways push, which is why every stroke should follow the direction they run. Sub-Zero states plainly that chemical condenser cleaners are unnecessary and not recommended, so the foaming cans at the hardware store can stay there. ENERGY STAR gives the same advice for older refrigerators of any make: keep the coils clean, and use the owner's manual to learn how to do it safely on that particular model.

• Turn a Sub-Zero off at its control panel; unplug a freestanding model or switch off its breaker.
• Put the gloves on and remove the kickplate, grille or toe panel.
• Vacuum the face of the condenser with the soft brush, always moving with the fins.
• Slide the coil brush into the deeper rows and draw the loosened dust out toward the vacuum nozzle.
• Wash the grille or kickplate in warm soapy water and let it dry before it goes back on.
• Restore power and give the cabinet a few hours to settle back to its set temperature.

How often, and why coastal kitchens run ahead of schedule

Sub-Zero puts the interval at six to twelve months, shorter where pets shed, and says a unit less than 6 months old does not need one yet. The USDA's food safety guidance for refrigerators in general points the same way: brush or vacuum the coil several times a year, and stop lint and dust from clogging the grill at the front, since that opening is how cooling air finds its way to the coil. Houses in Beach Colony and Olde Del Mar sit close enough to the ocean that a dog coming in off the beach tracks in sand and hair, and the mild weather tempts people to leave the sliders open, letting salt air drift through the kitchen. All of that settles at floor level, which is exactly where a kickplate pulls its air. In those homes, lean toward the six-month end of the range and glance at the grille whenever you mop.

What the control panel is trying to tell you

Some Sub-Zero models flag a clogged condenser before the food feels warm. A flashing Vacuum Condenser message means the unit is not running efficiently or the temperatures have crept up, and the cause can be dust on the coil, a door that is not sealing or a fault inside the system; clean the condenser first, then turn the unit back on, which resets the message. EC50 shown together with a flashing Service light means the refrigerator compressor has been running for too long. If the compartment temperatures still read close to normal, clean the condenser and then hold the bell key, which is the door-ajar alarm button, for 15 seconds to clear the code. If the temperatures are high, put the brush down and call for service instead.

When clean coils will not bring the cold back

A dusty condenser forces the compressor into longer, hotter cycles, so a cleaning often calms a unit that had started humming without a break, but it cannot repair a part that has already failed. Sub-Zero draws a firm line here: once the fresh-food side stays over 48 degrees with the control on 38, brushing the coil will not bring it back, and a service call is the next step. A fresh-food side that runs warm while the freezer stays hard frozen also points beyond the coil, toward an evaporator fan, a defrost problem or the sealed system itself. Our page on why a Sub-Zero refrigerator stops cooling goes through those causes one at a time, and Sub-Zero refrigerator repair in Del Mar is the place to start when the cabinet needs a technician.

What a professional tune-up adds

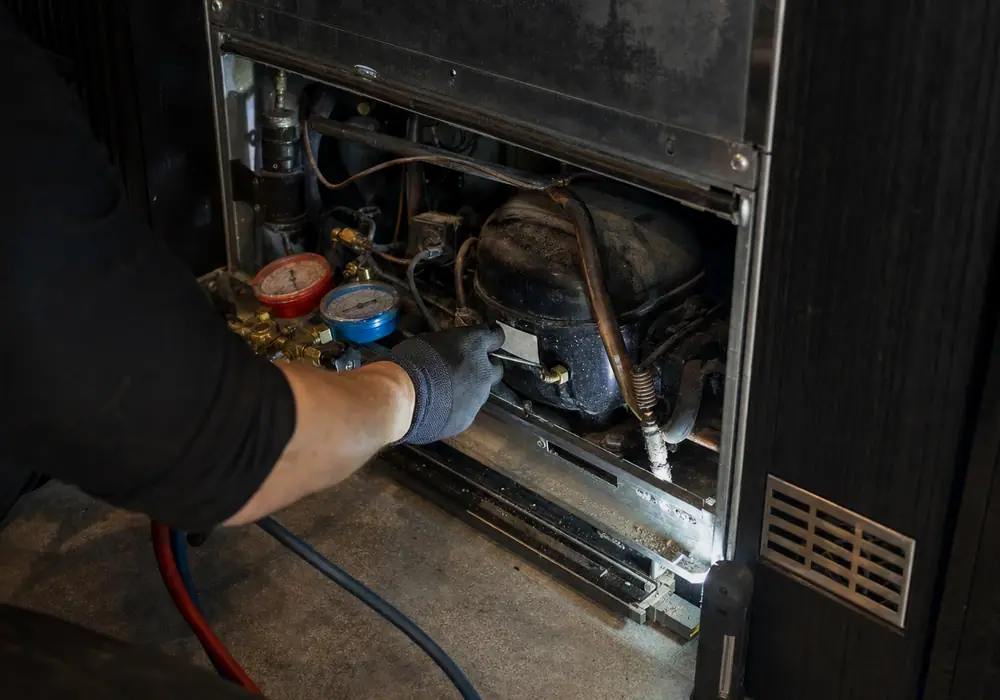

Coil cleaning is the part of upkeep a homeowner can handle; the rest takes meters, gauges and access to parts hidden behind panels. A technician can check how well the condenser fan moves air, time how long the compressor cycles, test whether the door gaskets close tight and inspect the drain and evaporator for ice or blockage. ENERGY STAR makes the case for the seals too, advising that they stay airtight and be replaced when they are not. Between visits you can care for the gaskets yourself: with the unit off, wipe them using mild detergent and water on a soft cloth, work a baking soda paste into stubborn marks, and save a 1:10 bleach-to-water mix for mold or mildew, never vinegar or rubbing alcohol. What a scheduled visit includes is laid out on the Classic, Designer and PRO care page.
